Radiation Shielding Validation for Deep Space Flight Systems
StemRad and the German Aerospace Center (DLR) integrated wearable protection systems aboard NASA's Orion spacecraft to mitigate cosmic radiation during lunar missions.
www.dlr.de
The German Aerospace Center, NASA, Lockheed Martin, and StemRad collaborated on the Matroshka AstroRad Radiation Experiment (MARE) during the Artemis I mission to validate protective equipment designed for crewed deep-space operations. The project evaluated StemRad's wearable shielding system to reduce ionizing radiation exposure in aerospace environments beyond low Earth orbit.
Technical Challenge and Joint Operational Integration
Missions beyond the magnetosphere expose flight hardware and personnel to elevated galactic cosmic radiation and acute solar particle events. These exposure levels present biological risks, including radiation sickness and long-term carcinogenic effects.
The joint initiative combined complementary expertise to test shielding efficacy under operational lunar flight profiles:
- DLR led the scientific evaluation and supplied 16 active M-42 radiation measuring devices along with tissue-equivalent measurement infrastructure.
- StemRad provided the AstroRad radiation protection vest.
- NASA provided 18 Crew Active Dosimeters (CAD), several thousand thermoluminescent dosimeters, and integrated the payloads within the spacecraft structure.
- Lockheed Martin supported integration into the Orion capsule passenger configuration.
Technical Architecture and Protective Mechanisms

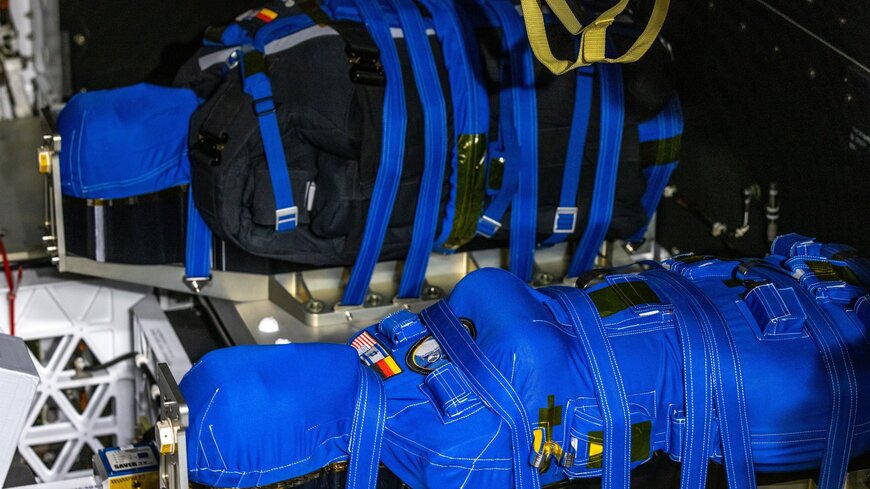

The experimental setup utilized two tissue-equivalent adult female phantoms, Helga and Zohar, each constructed from 38 polymer discs reproducing biological tissue, organ, and bone densities. Zohar was fitted with the AstroRad vest, while Helga served as the unshielded control.
The vest utilizes a high-hydrogen-content polymer architecture engineered to attenuate primary proton flux. Solid shielding elements are organized in a hexagonal array to maintain ergonomic mobility within confined flight modules. Shielding mass — approximately 26 kg in terrestrial gravity — is selectively concentrated over highly radiosensitive regions, including blood-forming organs, lungs, gastrointestinal structures, and reproductive tissue.
Deployment and Quantitative Performance Analysis
During the 25.5-day circumlunar mission, integrated active and passive dosimeter networks recorded continuous exposure profiles through Earth's Van Allen belts and translunar space. Extrapolating measured flight data to historical solar particle event spectra demonstrated defined attenuation values:
The experimental setup utilized two tissue-equivalent adult female phantoms, Helga and Zohar, each constructed from 38 polymer discs reproducing biological tissue, organ, and bone densities. Zohar was fitted with the AstroRad vest, while Helga served as the unshielded control.
The vest utilizes a high-hydrogen-content polymer architecture engineered to attenuate primary proton flux. Solid shielding elements are organized in a hexagonal array to maintain ergonomic mobility within confined flight modules. Shielding mass — approximately 26 kg in terrestrial gravity — is selectively concentrated over highly radiosensitive regions, including blood-forming organs, lungs, gastrointestinal structures, and reproductive tissue.
Deployment and Quantitative Performance Analysis
During the 25.5-day circumlunar mission, integrated active and passive dosimeter networks recorded continuous exposure profiles through Earth's Van Allen belts and translunar space. Extrapolating measured flight data to historical solar particle event spectra demonstrated defined attenuation values:
- In modeling based on the August 1972 solar event, the vest configuration reduced the effective radiation dose by 58.2%.
- Modeling for the higher-energy October 1989 particle event indicated a 36.9% dose reduction.
- Mass-equivalent full-body shielding simulations yielded approximately 30% less localized protection than the targeted organ-specific vest design.
Operational Application in Digital and Aerospace Infrastructure
The wearable radiation shielding architecture functions as a mobile countermeasure complementary to structural storm shelters on deep-space exploration platforms. By lowering accumulated lifetime exposure doses, this system design supports crew mobility during emergency maneuvers, enhances operational safety parameters, and extends allowable mission durations across lunar surface infrastructure and long-duration interplanetary transit vehicles.
Edited by Evgeny Churilov, Induportals Media - Adapted by AI.
