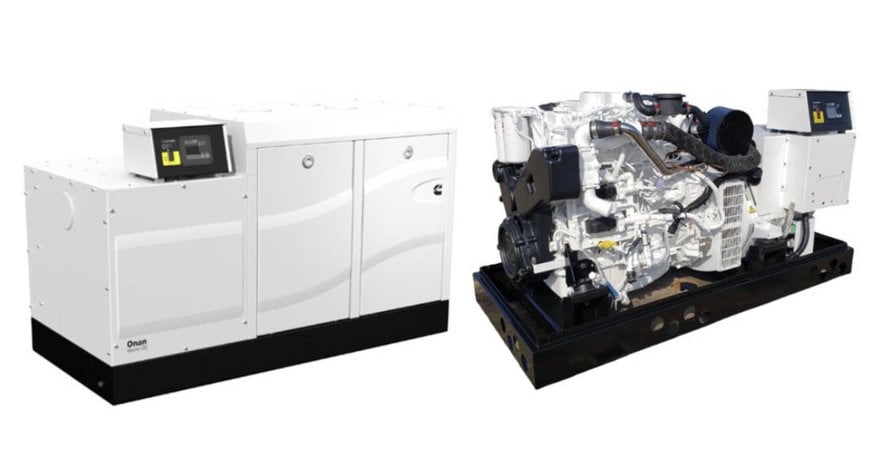

Cummins marine Onan gensets deliver all the power of ‘one brand’ ownership
The electrical power spread of the Cummins marine Onan range now stretches from 4 kWe to 195 kWe. Previously, the highest Cummins Onan rating available was 65 kWe.
www.cummins.com
Cummins has extended its portfolio of Onan marine generator sets with the introduction of the MDC (Marine Diesel Cummins) Turbo and Onan QSB7E ranges.
Details of the two generator sets were shared at the Marine Equipment Trade Show (METS), a premium European showcase for professionals in the leisure marine industry.
The arrival of the MDC Turbo and Onan QSB7E means boatbuilders and owners can now deal with a single trusted brand – Cummins – for the entire power requirement of their vessel. Cummins is the parent brand of Onan and of Stamford, the leading name in alternators for marine applications.
Cummins generator sets are renowned for their robust build quality and outstanding performance characteristics, notably in the area of low noise, vibration and harshness (NVH). The two new ranges, which can run on 100% hydrotreated vegetable oil (HVO 100), build on that proud heritage of reliable, smooth and efficient power delivery.
The versatility of the MDC and Onan QSB7E is enhanced by the ability to synchronise the generator sets, yielding benefits such as improved stability of electrical supply, greater fuel efficiency and higher levels of comfort all round for passengers and crew.
Cummins B4.5 packs propulsion punch
- Compliant with IMO II, EU Stage V, and RCD 2 regulations without aftertreatment.
- Offers 102-250 hp (76-186 kW) in propulsion and 76-129 kWm in auxiliary formats.
- Best-in-class peak torque for improved acceleration and high-load performance.
- High-pressure fuel system ensures class-leading fuel efficiency.
- Cast water-cooled exhaust manifold reduces surface temperatures and enhances performance.
- Electrical system available in 12 or 24 volts with OEM interface connections.
- Remote backup throttle option allows easy integration for specific vessels.
- Automated push-button start/stop controls integrated through the ECM.
- Engine protection system reduces risk of catastrophic failure.
Cummins QSB 6.7 for smooth and responsive performance
- Compact design with flexible installation options for diverse boat applications.
- Industry-leading power density from a matched turbocharger and 24-valve cylinder head.
- Emits 80% less noise at idle, aided by the Walker air filter and high-pressure fuel system.
- Compliant with IMO II, EU Stage V, RCD 2, and US EPA Tier 3 regulations.
- Recreational propulsion power: 230-550 hp (172-410 kW); auxiliary power: 98-210 kWm.
- Incredible torque of 720-1250 lbft (976-1695 Nm) for optimal helm performance.
- Single-loop low-temperature aftercooling eliminates dual keel coolers and reduces emissions.
- Durable tube-and-shell heat exchanger with minimal maintenance requirements.
- Meets IACS and SOLAS standards; oil service intervals extend to 500 hours with ULSD.
- Electrical system offered in 12 and 24 volts with isolated and non-isolated versions.
- Quantum System electronics package monitors key parameters and ensures engine protection.
- Simplified electrical interface box facilitates seamless vessel integration.
