High-Temperature Eddy-Current Sensors for Extreme Environments

The sensor systems are designed to measure motion of electrically conductive surfaces without physical contact. According to KMM Precision Measuring, the systems operate from -320°F to +1000°F, with short-term operation up to +1200°F, and can withstand pressures of up to 5000 psi. These characteristics target measurement applications in nuclear power, steam and gas turbines, aerospace propulsion, rocket engines, turbopumps and high-temperature research.

The technology uses inductive eddy-current measurement. An electromagnetic field generated by the sensor induces eddy currents in the conductive target. Changes in the target position alter the impedance of the sensor coil, and the associated signal-conditioning electronics convert this change into a linear analogue output. The non-contact principle allows displacement and surface motion to be monitored without introducing mechanical contact between the sensor and the moving component.

Inconel Construction and Mineral-Insulated Cabling
The extreme-environment sensors use hermetically sealed, laser-welded nickel-chromium alloy housings. KMM Precision Measuring specifies Inconel construction for the sensor body and metal-sheathed, mineral-insulated cabling for operation in high-temperature environments. The construction is intended to protect the measurement system from high temperature, pressure, vibration and environmental contaminants.

The published technical documentation identifies applications including nuclear reactors, steam and gas turbines, turbine and rocket engines, chemical processes, research projects and high-temperature processing. The sensor design also incorporates dual coils and thermal compensation to reduce the effects of temperature changes on measurement sensitivity and linearity.

Three Displacement Sensor Configurations
KMM Precision Measuring offers three displacement sensor systems within the extreme-environment range: KD-1925, KD-1950 and KD-1975. The KD-1925 is specified for pressures up to 5000 psi, while the KD-1950 and KD-1975 are specified for pressures up to 3500 psi.

Technical specifications published for the sensor family show measuring ranges from 0.050 inch (1.27 mm) for the KD-1925 to 0.200 inch (5 mm) for the KD-1975, depending on configuration. Static resolution is specified from 30 microinches (0.00075 mm) to 100 microinches (0.0025 mm), while dynamic resolution ranges from 50 microinches (0.0012 mm) to 200 microinches (0.005 mm). Nonlinearity is specified at ±1% full-scale output for the KD-1950 and KD-1975, and ±1.5% for the KD-1925 at calibration temperature.

These specifications allow the different configurations to be matched to measurement range, pressure and resolution requirements rather than using a single sensor design across all applications.

Signal Conditioning and Multi-Channel Measurement
The sensor systems use KMM's signal-conditioning electronics for processing the displacement signal. The press release specifies single-channel systems in NEMA enclosures or bench-top and rack-mountable Eurocard configurations, with the NEMA enclosure incorporating a power supply and digital panel meter.

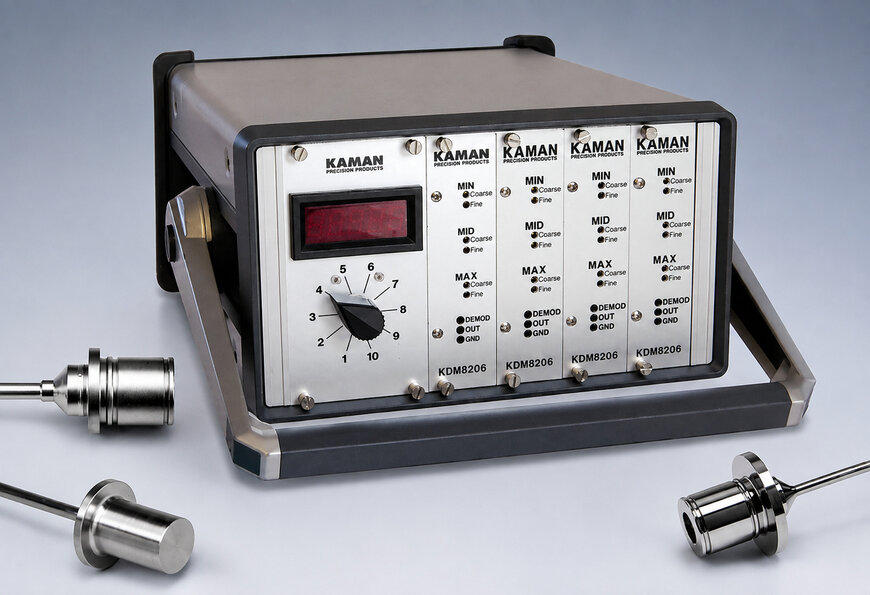

The rack-mounted configuration is described as supporting up to 12 measuring channels in the KDM-8206 system. The current product documentation also lists KDM-8206 as a signal-conditioning product within KMM Precision Measuring's measurement portfolio.

The separation of the high-temperature sensor from the signal-conditioning electronics is significant for extreme-environment measurement because the sensing element can be installed close to the measurement point while the electronics remain in a more controlled environment.

Applications in Power Generation and Aerospace
In power generation, non-contact displacement measurement can be used for monitoring shaft motion and turbine-related measurements. KMM's technical documentation states that the high-temperature sensors were originally developed for steam-turbine shaft runout measurement in nuclear power plants and have also been used for nuclear fuel-rod position and vibration measurements.

For aerospace applications, the same measurement principle can be applied to turbine and rocket-engine components where direct-contact sensors may be unsuitable because of temperature, speed or mechanical accessibility. Materials research and high-temperature processing provide additional applications in which displacement must be measured while the target remains in a demanding thermal or environmental condition.

Additional Context:
This section details technical specifications and competitive benchmarking not included in the original product announcement

Comparable eddy-current displacement systems are available for industrial high-temperature measurement, but their environmental specifications differ substantially from those of the KMM extreme-environment range. For example, Micro-Epsilon's eddyNCDT 3020 supports sensor temperatures up to 200°C and controller temperatures up to 105°C, with measuring ranges from 1 to 80 mm and resolution down to 40 nm. Its stated applications include welding, steel rolling and die-casting environments.

Micro-Epsilon's eddyNCDT 3060/3070 systems are specified for sensor ambient temperatures up to 180°C and pressures up to 700 bar. The comparison illustrates the different design priorities within eddy-current displacement measurement: industrial systems can combine high resolution, digital interfaces and relatively broad measuring ranges, while KMM's extreme-environment systems are specified for substantially higher continuous sensor temperatures and pressures.

KMM's published specifications extend to 1000°F (538°C) continuous operation and 1200°F (649°C) for short-term operation, together with pressure ratings of 3500 or 5000 psi depending on the sensor. The sensor documentation also specifies Inconel construction, mineral-insulated cabling and resolutions down to 30 microinches (0.00075 mm) for the KD-1925 configuration.
