NORTHROP GRUMMAN: FIRST FLIGHT OF LONGEST MONOLITHIC SOLID ROCKET MOTORS
Northrop Grumman’s GEM 63XL solid rocket boosters will be the longest single-segment motors ever flown.

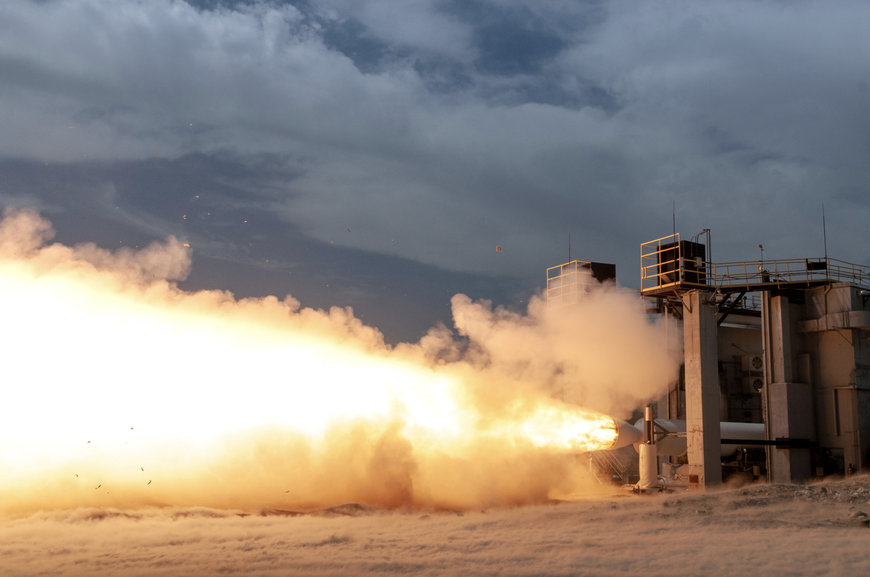

Northrop Grumman successfully conducted a validation test and qualified its GEM 63XL rocket motor in 2021 at its Promontory, Utah, facility. (Photo Credit: Northrop Grumman)
Digital engineering and advanced technologies are unlocking new opportunities and accelerating growth in the rapidly evolving space launch industry.
Using virtual reality and monolithic designs, meaning manufactured and cast as a single piece, Northrop Grumman's 63-inch diameter, extended length Graphite Epoxy Motor (GEM 63XL) solid rocket booster (SRB) made its debut, supporting the inaugural flight of United Launch Alliance's (ULA) Vulcan Centaur rocket on January 8th.
At more than 72 feet long, the GEM 63XL is the longest monolithic SRB ever produced for flight, a designation previously held by its predecessor, the 66-foot long, 63-inch diameter GEM 63.
Manufacturing and casting the GEM 63XL as a single piece makes the motors more reliable and efficient by reducing joints, hardware and overall mass. This is crucial for an SRB of this length that can deliver over 463,000 pounds of thrust to enhance the capabilities of rockets launching the nation’s most critical payloads.
Pioneering Engineering with Virtual Reality
To push the boundaries of possible, the team looked to identify what could be achieved using virtual reality to build the next generation of boosters. The fifth-generation GEM 63XL benefits from flight-proven designs and components, advancing the GEM legacy of increasing capabilities.
Using virtual reality, GEM design and engineering teams were immersed into 360-degree virtual environments to observe and test life-size boosters. In minutes, engineers created 3D computer-aided design (CAD) renderings, put on headsets and thoroughly examined a full-scale model to validate the design before manufacturing began.
Jim Maul, senior staff engineer, propulsion systems, Northrop Grumman, demonstrates the use of tools in virtual reality. (Photo Credit: Northrop Grumman)
Manufacturing Excellence
Building GEM 63XLs monolithically rather than segmented provides several efficiency benefits, including:
Digital engineering and advanced technologies are unlocking new opportunities and accelerating growth in the rapidly evolving space launch industry.
Using virtual reality and monolithic designs, meaning manufactured and cast as a single piece, Northrop Grumman's 63-inch diameter, extended length Graphite Epoxy Motor (GEM 63XL) solid rocket booster (SRB) made its debut, supporting the inaugural flight of United Launch Alliance's (ULA) Vulcan Centaur rocket on January 8th.
At more than 72 feet long, the GEM 63XL is the longest monolithic SRB ever produced for flight, a designation previously held by its predecessor, the 66-foot long, 63-inch diameter GEM 63.
Manufacturing and casting the GEM 63XL as a single piece makes the motors more reliable and efficient by reducing joints, hardware and overall mass. This is crucial for an SRB of this length that can deliver over 463,000 pounds of thrust to enhance the capabilities of rockets launching the nation’s most critical payloads.
Pioneering Engineering with Virtual Reality
To push the boundaries of possible, the team looked to identify what could be achieved using virtual reality to build the next generation of boosters. The fifth-generation GEM 63XL benefits from flight-proven designs and components, advancing the GEM legacy of increasing capabilities.
Using virtual reality, GEM design and engineering teams were immersed into 360-degree virtual environments to observe and test life-size boosters. In minutes, engineers created 3D computer-aided design (CAD) renderings, put on headsets and thoroughly examined a full-scale model to validate the design before manufacturing began.
Jim Maul, senior staff engineer, propulsion systems, Northrop Grumman, demonstrates the use of tools in virtual reality. (Photo Credit: Northrop Grumman)
Manufacturing Excellence
Building GEM 63XLs monolithically rather than segmented provides several efficiency benefits, including:
- Reducing hardware and overall mass, to enable a greater thrust-to-weight ratio;
- Reducing motor handling and assembly operations;
- Reducing field joint interfaces and launch-site assembly support;
- Streamlining booster mating to core vehicle;
- Enabling rapid launch cadence scheduling, reducing joints and potential points of failure.
Up to six GEM 63XL SRBs can be integrated with the Vulcan rocket. Together, with the pair of BE-4 engines, powerful liquefied natural gas engines serving as the rocket’s main engine propulsion deliver over 3.3 million pounds of thrust to lift customer payloads to desired orbits.
The GEM motors have more capabilities, including their design, and building the motors to be shipped directly to the launch pad with little assembly required.
From manufacturing and processing the booster to its overall performance, the efficiency of the monolithic approach supports customer goals and provides significant benefits including a lighter, more cost-effective and powerful booster.
The GEM motors have more capabilities, including their design, and building the motors to be shipped directly to the launch pad with little assembly required.
From manufacturing and processing the booster to its overall performance, the efficiency of the monolithic approach supports customer goals and provides significant benefits including a lighter, more cost-effective and powerful booster.
